Tesla m3 4

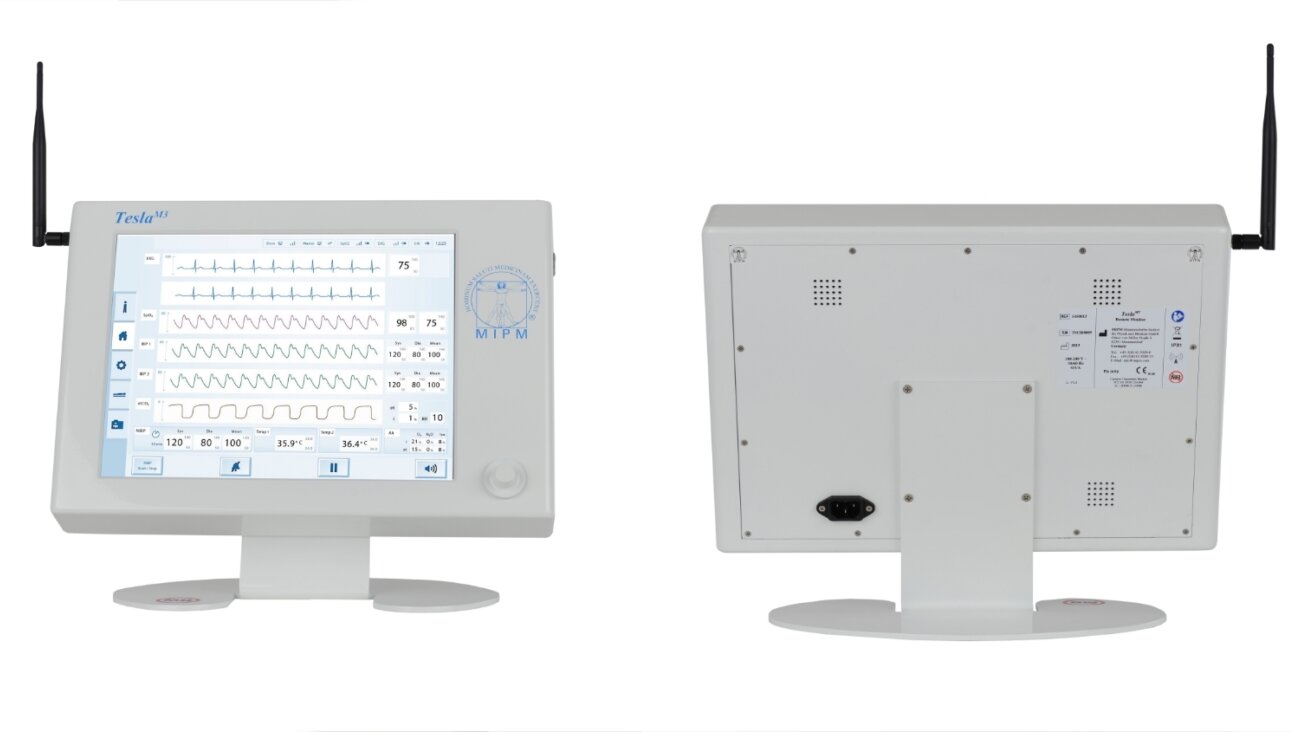

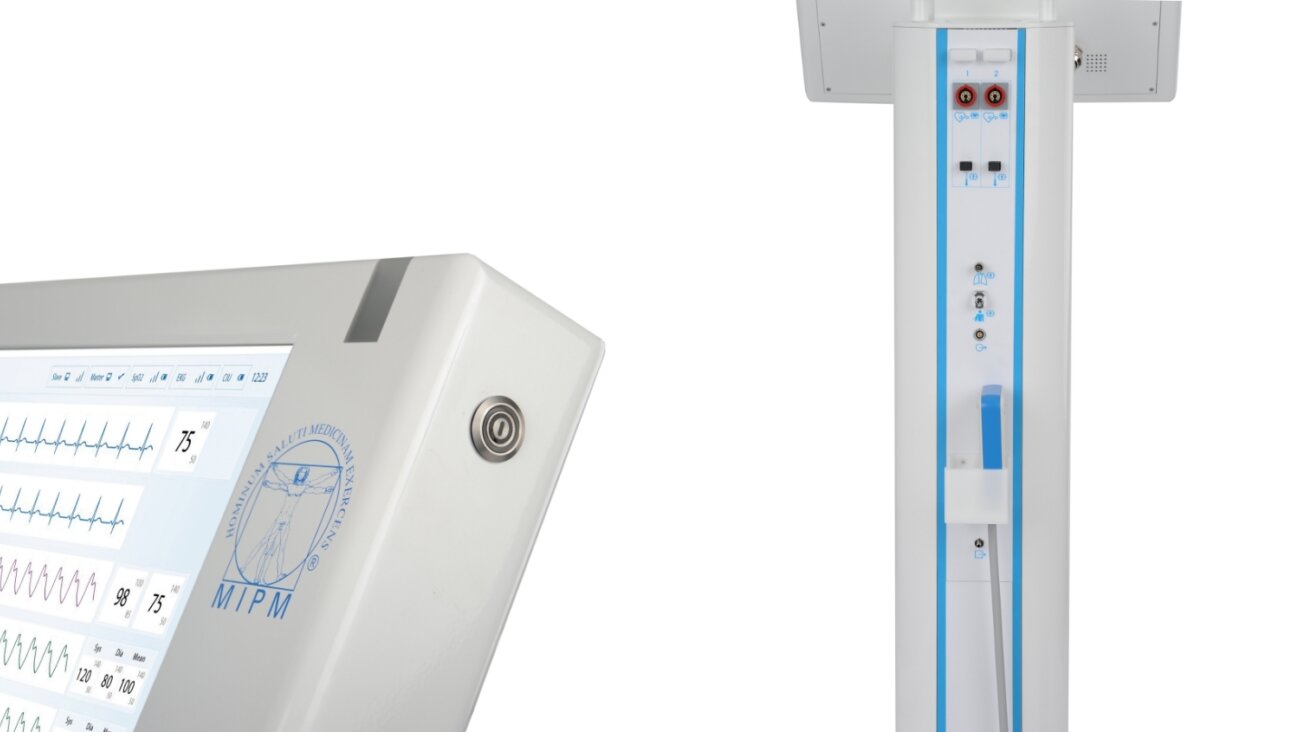

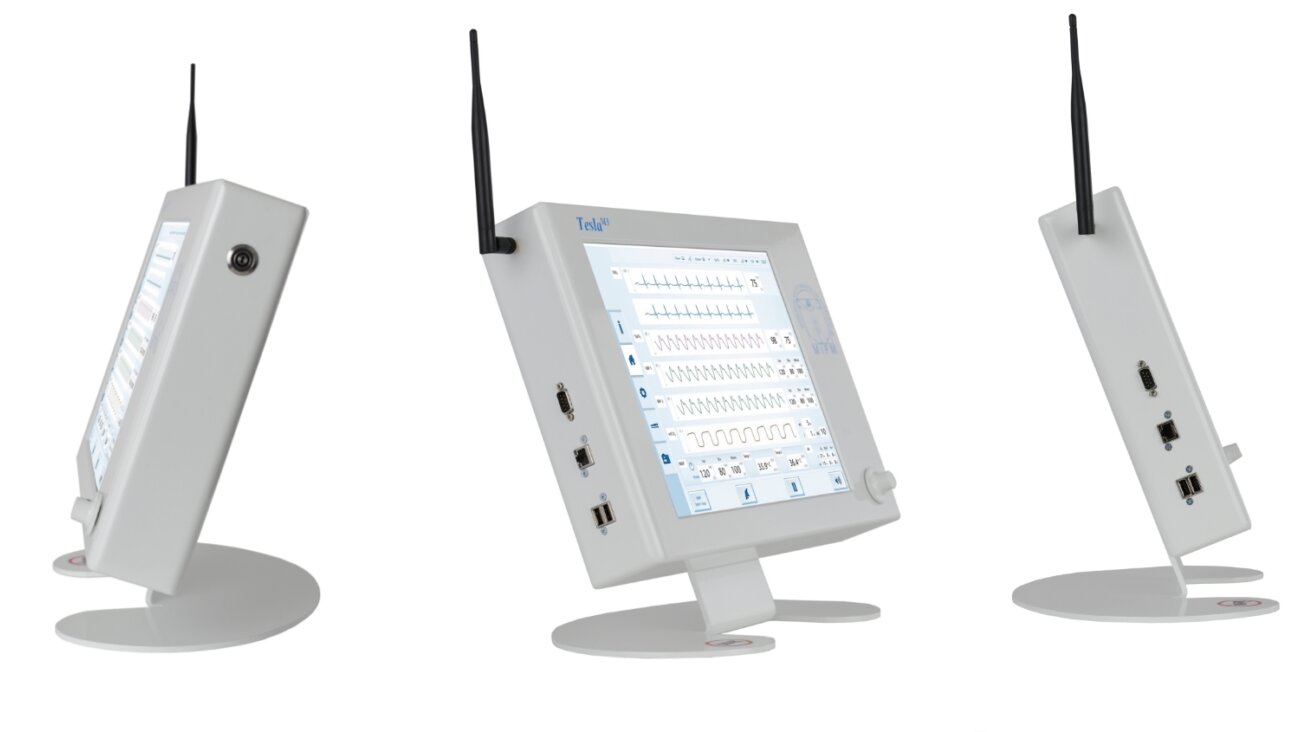

The modular system allows you to configure your MRI-conditional monitor to your specific requirements. Use the TeslaM3 standard configuration with wireless ECG, wireless SpO2 sensor and NIBP for hemodynamic monitoring during the MRI examination. Integrate the multigas module for end-to-end monitoring of MRI anesthesia, or the option for invasive blood pressure monitoring so that you can monitor your intensive care patients during MRI scans.

The TeslaM3 can be configured to your individual requirements and you can upgrade all components at any time to display the specific vital functions you need to see.

All components of the TeslaM3 are fully integrated. The integrated power supply unit allows the monitor to be connected to the power mains during the scan in the MRI suite.

    • Electrocardiogram (ECG)
    • Pulse oximetry (SpO2)
    • Non-invasive blood pressure (NIBP)
    • Invasive blood pressure (IBP)
    • Temperature
    • Capnography (etCO2)
    • Respiratory rate
    • Oxygen (O2)
    • Anesthetic gases (DES, ENF, HAL, ISO, N2O, SEV)
    • TeslaM3 basic setting: SpO2, ECG and NIBP for cardiological monitoring
    • Multigas Module: 02, CO2, N20 Anaesthetic gas Auto detection, respiratory rate
    • Capnography Module: etCO2 and Respiration Rate
    • Up to two IBP channels for monitoring your intensive care patients
    • Add up to two temperature channels to measure the temperature on the surface or intracorporeally
    • Remote monitor for operation in the control room
    • Gating Interface
    • Storage shelf
    • Drawer
    • Interface to the anaesthesia machine*

    *Currently available for the Dräger Fabius MRI

    • Intuitive to handle
    • Modular concept for individual configuration
    • All modules can be upgraded later on
    • Monitor for the MRI control room
    • 15“ inch Touch Screen
    • Safe and stable data transmission
    • Signal amplifier technology

  • specifically for MRI examination of animals



    Tesla M3vet

Image Alt Image Alt Image Alt Image Alt

Optional

The TeslaM3 is optionally available with a drawer, a storage shelf, or a combination of both.

  • Specifically designed for use during MRI examinations, the TeslaM3 offers additional flexibility for organizing devices and accessories with its optional drawer and/or storage shelf. The storage shelf provides a space-saving solution for positioning additional equipment, helping to streamline workflows and make optimal use of the available workspace. The drawer offers convenient storage for accessories and consumables, ensuring that frequently used items remain neatly organized and easily accessible at all times.









    *The image is for illustrative purposes only.

Technical features

Specifications are subject to change without notice.

Weight:
Master Monitor: 36kg
Remote Monitor: 7,5kg
Dimensions (WxDxH)
Master Monitor: 60cm x 62cm x 140cm
Remote Monitor: 45cm x 24cm x 36cm
Display
  • 15" touchscreen
  • Resolution: 1024x768
Displayable channels
  • 6 wave forms
  • 4 numeric
Power supply
  • Integrated power supply and battery operation for 6.5 hours
Available parameters
  • ECG (Cascade)
  • SpO2
  • NIBP
  • IBP (2x)
  • Capnography
  • Anesthetic agents
  • Body temperature (2x, surface or Intracorporeal)
